 Photo Chemical Etching Complete Layout Service




  • CAD drawing from prints
  • Convert ACAD dxf or dwg files for photoplotting
  • Etch factor compensation according to material / thickness
  • Create Half Etch Features

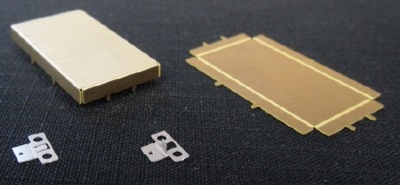

  • Add Bend Lines
  • Add Etch Lines
  • Add Tabs
  • Create / Add Logos
  • Add Registration Targets
  • Panelize for Optimum Output

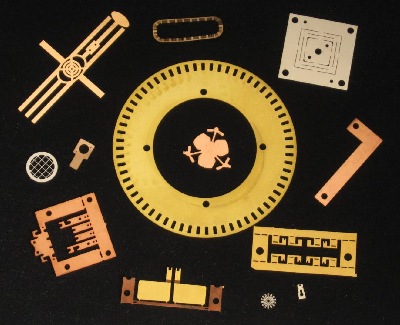

                   Check out some more of our Etching projects
